Seamark COF bonding machine ZM-B100 & ZM-B65

Seamark COF bonding machine are suitable for variety of FPC / COF / TAB and LCD or PCB board combination bonding. It is a professional high precision repair equipment for repairing 2K, 4K and curved screen different sizes of LCD screen cable damage or natural fall off.

Rapid heating and cooling

Clearly counterpoint

Powerful software

Automatically detect fault and alarm function

Get a best quote
Seamark COF Bonding Machine ZM-B100 & ZM-B65 Seamark COF Bonding Machine ZM-B100 & ZM-B65
Seamark COF Bonding Machine ZM-B100 & ZM-B65 Seamark COF Bonding Machine ZM-B100 & ZM-B65
Seamark COF Bonding Machine ZM-B100 & ZM-B65 Seamark COF Bonding Machine ZM-B100 & ZM-B65

Key Features & Benefits

Seamark COF bonding machine ZM-B100 & ZM-B65:

  1. PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.
  2. 5.7 "color touch screen LCD display input, realizing the temperature curve, according to the Chinese menu, all the parameters set browse concise and straightforward.
  3. Large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.
  4. Under the high magnification camera system, ensure that the product clearly counterpoint.
  5. Powerful software, perfect the system debugging, automatically detect fault and alarm function.

Application

What Problem it Can Repair :

A variety of LCD problems, such as vertical, horizontal, black belt, the black line, the color line, ribbons, multi line, flower screen, black screen, white show, horizontal, vertical half and half fault, and so on.

Specifications

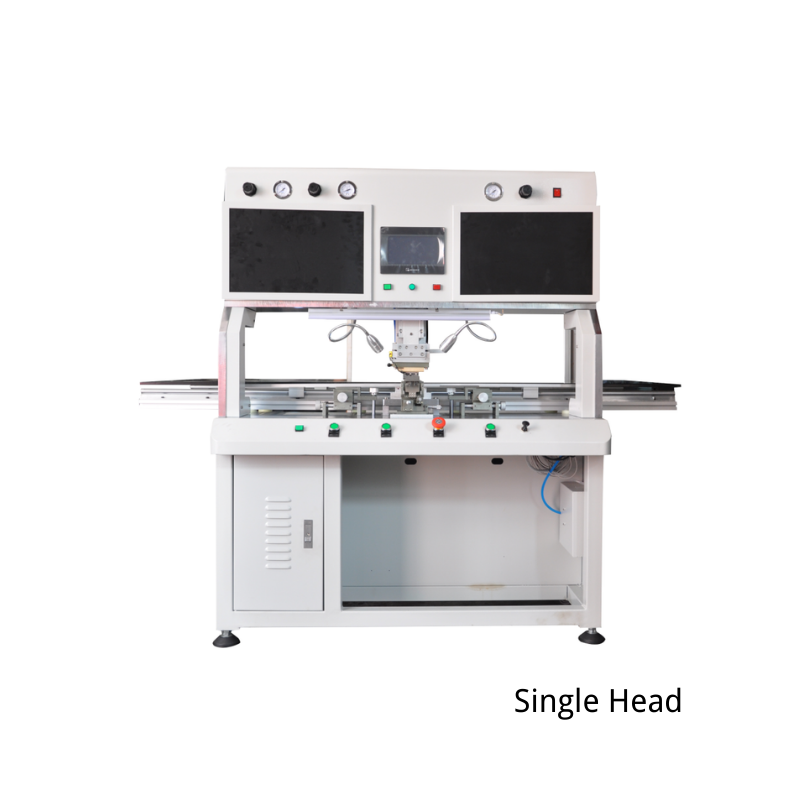

ModelSingle HeadDouble HeadMini model ZM-B65
Support Max LCD size100 inch (Can customize)7-65 inch
Heating modePulse heating
Working precision≤±0.01mm
Working capacity（PCS/HOUR）28 PCS45PCS20PCS
Machine size:1800mm (L) ×1200mm (W) ×1400mm(H)1500mm(L)*800mm(W)*1530mm(H)
Input PowerAC220V±10%,50-60 Hz
Rated Power(W)40001500W
Work pressure0.4-0.8Mpa
Operation mode7inch touch screen control
Alignment system2 High definition C/LCCD camera
Temperature error range±0.5°C
Programming control devicePLC controller
TAB fixturemicrometer X, Y, Z Axis adjust
Platform movingManual operate
Hot press head size1.5mm*50mmLeft:2.0mm*50mm;Right:1.2mm*50mm1.5mm*50mm
