ZM-R7220A BGA Rework Station

ZM-R7220A BGA Rework Station is a high-reliable rework machine capable of LED SMD, BGA, QFN, FPGA chips. It will save you time when reworking most kinds of motherboards.

Stable and uniform heating

High-accuracy vision positioning

High-precision temperature control

Easy-to-use

Low maintenance

Get a best quote

ZM-R7220A Rework Station ZM-R7220A Rework Station
ZM-R7220A ZM-R7220A
ZM-R7220A ZM-R7220A

Key Features & Benefits

ZM-R7220A BGA Rework Station:

  1. Hot air Heating System Stable and Uniform

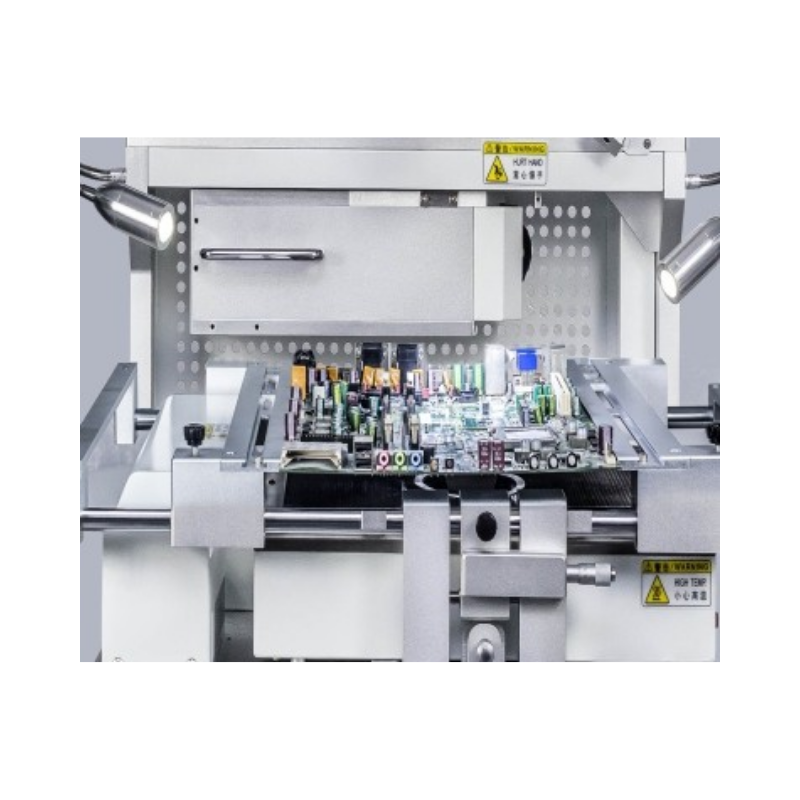

  2. Lower Heater Adjustable
  3. High-Precision PID Temperature Control System
  4. Industrial High-Definition CCD Camera(1.3MP)

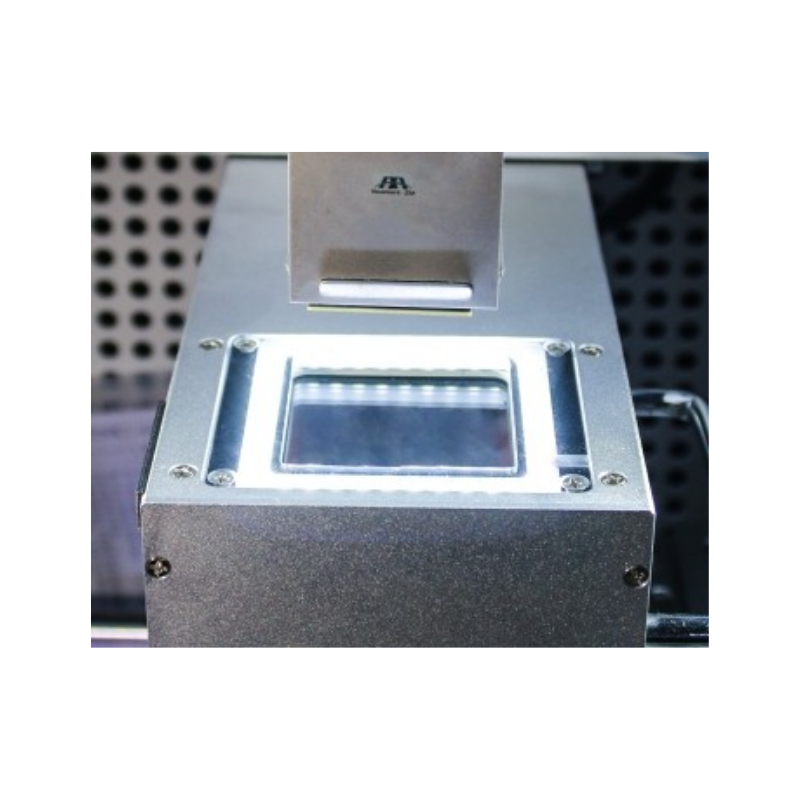

  5. High-Precision Optical Alignment System
  6. High-Resolution Touch Screen HMI Interface
  7. Automatic Placement, Desoldering
  8. Built-In Pressure Sensor System To Protects The PCB
  9. Real-Time Temperature Monitoring and Over-Temperature Protection.
  10. Emergency Stop Function
  11. Side view camera(Optional)

Specifications

ModelR7220A
Power SupplyAC220V±10% 50/60Hz
PowerPower 5.65KW(Max) Top heater(1.45KW ) Bottom heater(1.2KW) IR Preheater(2.7KW)
PCB Size412×370mm(Max) ; 6×6mm(Min)
BGA Chip Size60×60mm(Max) ; 2×2mm(Min)
IR Temp. Zone Size285×375mm
Temp. Sensor1 PCS
Operation Method7" HD touch screen
Control SystemAutonomous heating control system V2(with software copyright)
Display System15"SD industrial display(720P front screen)
Alignment System2M pixels SD digital imaging system, automatic optical zoom with laser red-dot indicator
Vacuum adsorptionAutomatic
Alignment Accuracy±0.02mm
Temp. ControlK-type thermocouple closed-loop control with accuracy up to ±3℃
Feeding DeviceNo
PositioningV-groove with universal fixture
DimensionsL685×W633×H850mm
Weight76KG

Video

Have Questions?

We're always on call to solve your problem

  • Will you provide on-site support ?

    Our team of qualified and experienced engineers is available for on-site maintenance and repair support. you can reach us through online chatbox, skype, Whatsapp, phone call and email, we’re always on call to help you solve the problems.

  • Any training will be provided ?

    We offer complete training programs for all of our Pick and Place Machine, Reflow Equipment, Wave and Selective soldering equipment at our Shenzhen, Suzhou facility and also provide on-site training at customer locations.  Our programs are designed to provide your engineers, technicians and machine operators with the operation and maintenance knowledge they need to get the best performance out of our machines.

  • Where can I get spare parts ?

    You can visit our spare parts store to get the parts you need, payment by Paypal/credit card is available. besides, you can contact us for the parts, payment by Bank transfer is available.
