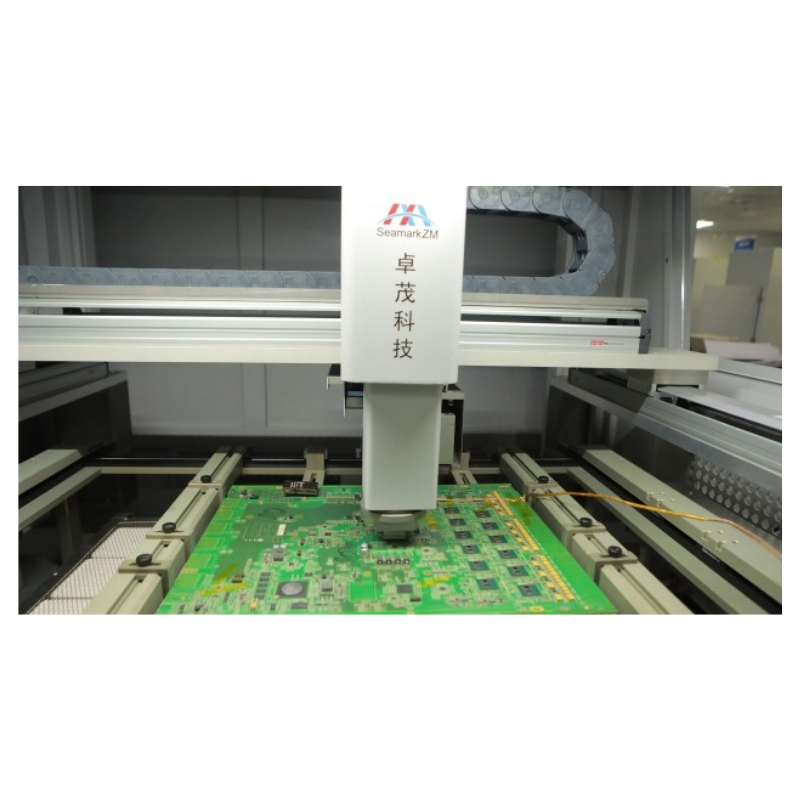

ZM-R8000D

Large Precise Rework Station

R8000D is an ultra-large high-end optical alignment precise rework station, suitable for rework of 5G server and large server mainboards.

Specially for ZTE and Huawei

Soldering Flux Smoke Extraction System

Precise Motion Platform

Multifunctional Control Feature

Three Independently Programmable Heating Zones

Stable Temperature Control

Bottom Heating System

Get a best quote
ZM-R8000D main ZM-R8000D main
ZM-R8000D ZM-R8000D

Key Features & Benefits

The whole machine is fully ESD protected, and complies with ESD protection standards.

The safety design of the whole machine complies with the safety design specifications of GB / T15706-2012, and the relevant safety design requirements of GB / T19671 bimanual installation.

The heating area is independently temperature controlled, and the process temperature can be designed according to the requirements, effectively avoiding PCBA deformation caused by uneven temperature, dual-protecting the heating power devices, and preventing the damage maintenance products caused by temprature’s out of control.

With drawer loading design, the stage can be stretched out, which is convenient for picking and placing the maintenance substrate.

Using self-innovated image alignment technology can effectively solve the problem of visual alignment placement of large-size objects.

The self-developed multi-function foolproof operating system is easy to operate and can be connected with MES / SAP. Equipped with a high-power silent smoke extraction system, the flux volatile gas generated during the PCBA rework process can be extracted and discharged in time.

Specifications

ModelR8000D
Power SupplyAC380V±10% 50/60Hz
Power33.8KW Max
Heating PowerUpper temperature zone(2KW ) Lower temperature zone(2KW) IR temperature zone(28KW) Other power(1.8KW)
Control SystemIndustrial PC+Servo motion control system
Alignment Accuracy±0.025mm(X,Y axis)
Temp. ControlK-type thermocouple closed-loop control with accuracy up to ±1℃
Heating MethodTop heating+Bottom heating+Mobile IR heating
Temp. Sensor6PCS
PositioningL-groove with universal fixture(shaped fixture can be customized)
PCB Size850×660mm（Max）;50×50mm（Min）
Temperature controlFull closed-loop control, temperature overshoot / fluctuation does not exceed 5 ℃, can automatically
monitor the heating working status
CoolingCool wind
Cooling RateRapid cooling, 200-100℃ single borad cooling rate 2-3℃/s
Mounting Pressure<5N
DimensionsL1671×W1771×H1928mm
Weight929KG
