Seamark Desiccant Dry Cabinet

Seamark Desiccant Dry Cabinet is ideal for large boards and assemblies, and/or for mid-to-high volume assemblers and component or board manufacturers and distributors—or anyone who requires abundant storage capacity to maintain high-turnover inventories.

Fast drying

Prevent moisture-related damage and failures

Eliminate ongoing consumable expenses

Nitrogen environment available

Get a best quote

Seamark Desiccant Dry Cabinet Seamark Desiccant Dry Cabinet
Seamark Desiccant Dry Cabinet Seamark Desiccant Dry Cabinet
Seamark Desiccant Dry Cabinet Seamark Desiccant Dry Cabinet
Seamark Desiccant Dry Cabinet Seamark Desiccant Dry Cabinet
Seamark Desiccant Dry Cabinet Seamark Desiccant Dry Cabinet
Seamark Desiccant Dry Cabinet Seamark Desiccant Dry Cabinet

Key Features & Benefits

Seamark Desiccant Dry Cabinet Include:

  • Compression handles and airtight magnetic sealers on the door
  • Ultra-low humidity storage of ≤5%RH
  • Turbo dry modules for faster drying without compressed air
  • Anti-static wheels with brakes
  • Standard wheels
  • Anti-static paint and glass
  • Adjustable shelves with 200-lb capacity each
  • 1-year warranty
  • Digital RH & temperature display with data logging function and Windows-based PC software

Applications

USE ZM ULTRA-DRY STORAGE CABINETS TO PROTECT AND STORE:

  • ICs and components in reels, trays, sticks, feeders or loose in bins or bags prior to placement.
  • Multilayer PCBs and bare boards meant for military and other class 3, high-reliability products.
  • Double-sided boards that have been partially assembled.
  • Moisture-absorbing materials, such as epoxy, resins, chemicals and adhesives.
  • Films and plastics used in production.

Specifications

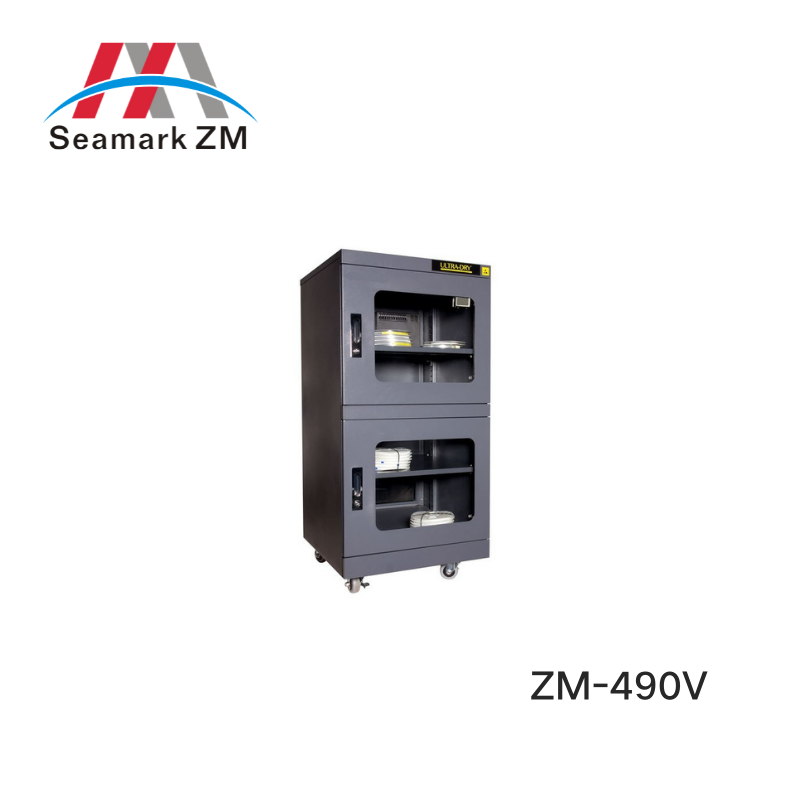

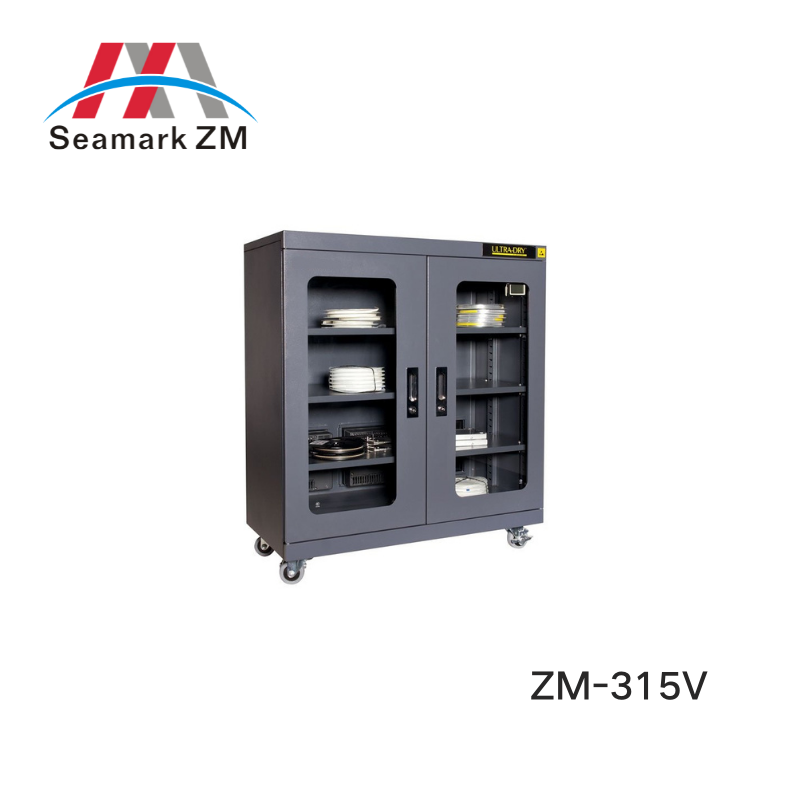

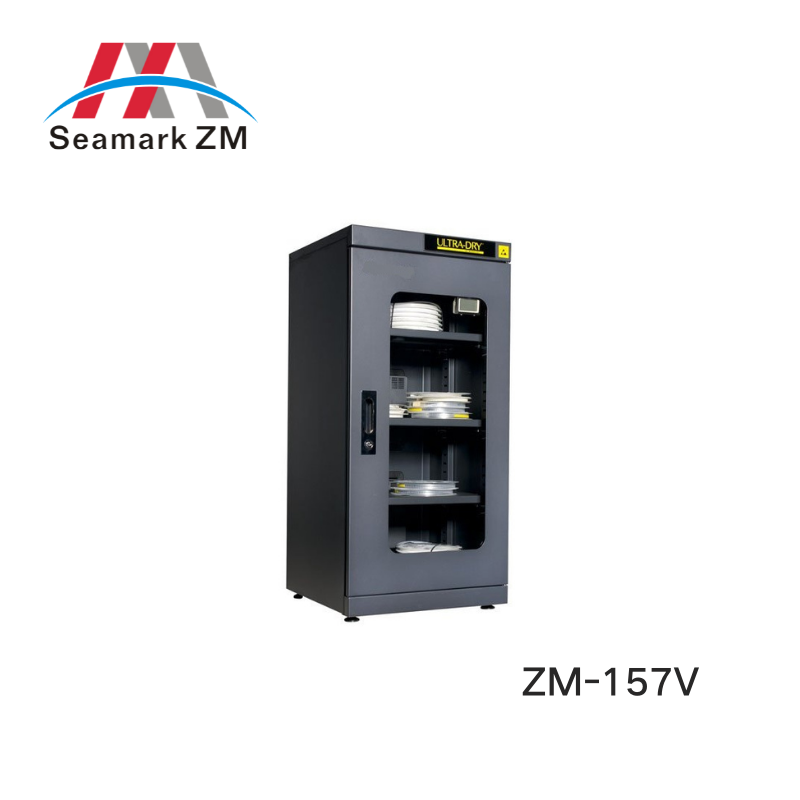

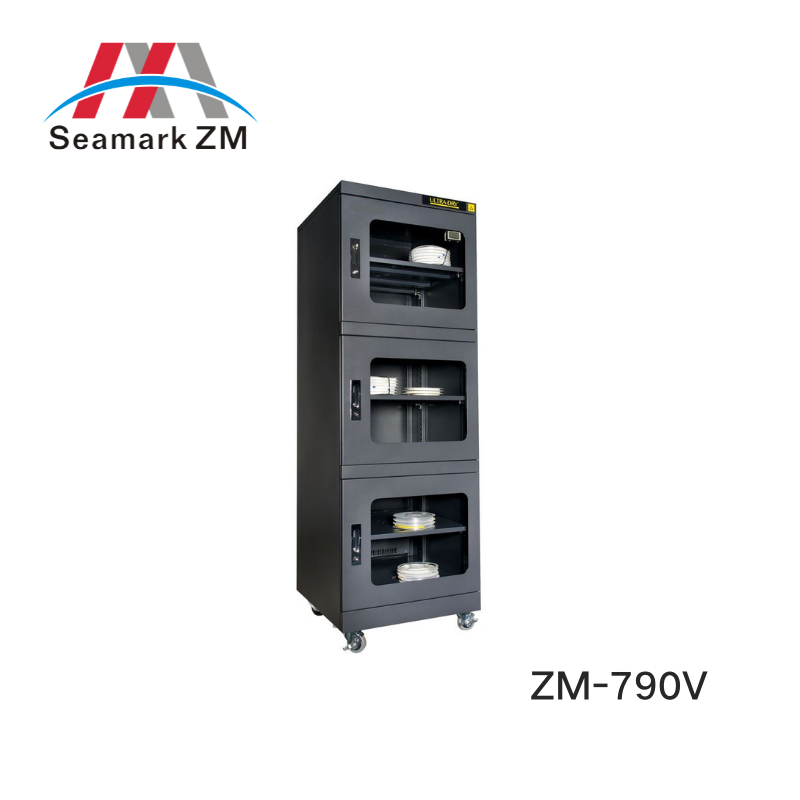

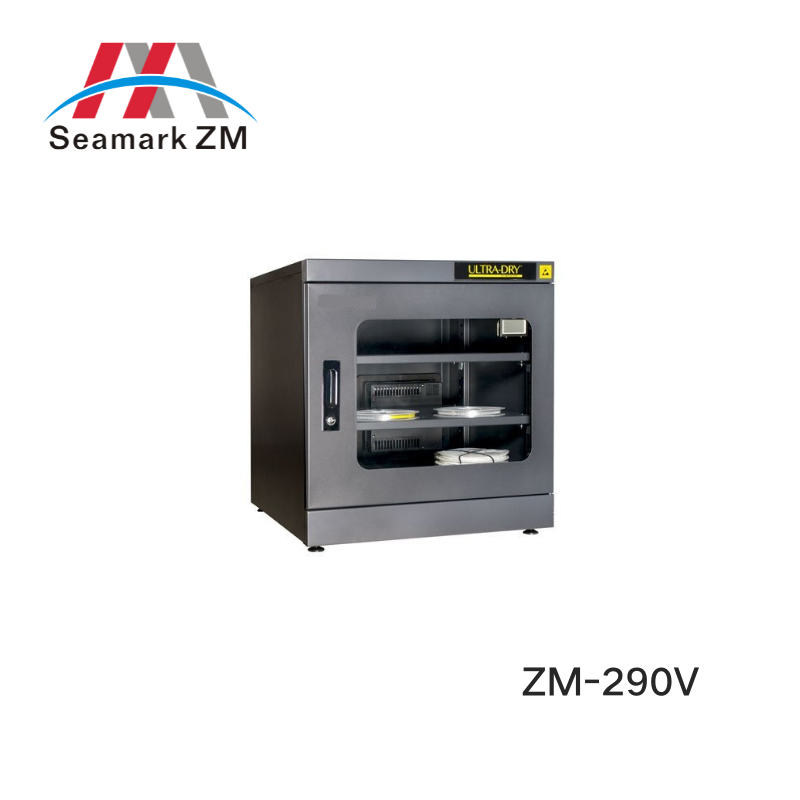

Model157V290V315V490V790V1490V
Electrical Requirements110V110V110V110V110V110V
External Size
L/W/H		18" x 18" x 38"
450 x 452 x 960mm		24" x 27.4" x 25"
600 x 695 x 642mm		36" x 18" x 41"
905 x 452 x 1045mm		24" x 27.4" x 50"
600 x 695 x 1274mm		24" x 27.4" x 72"
600 x 695 x 1820mm		47" x 27.4" x 72"
1200 x 695 x 1820mm
Internal Size
L/W/H		18" x 17" x 34"
448 x 425 x 870mm		24" x 25" x 21"
598 x 645 x 524mm		36" x 17" x 34"
903 x 425 x 870mm		24" x 25" x 42"
598 x 645 x 1071mm		24" x 25" x 64"
598 x 645 x 1618mm		47" x 25" x 64"
1198 x 645 x 1618mm
Capacity5.8 cu. ft. (165L)7.1 cu. ft. (202L)11.8 cu. ft. (334L)14.5 cu. ft. (413L)22 cu. ft. (624L)44.1 cu. ft. (1250L)
Number of Shelves3 Adjustable2 Adjustable3 Adjustable3 Adjustable5 Adjustable5 Adjustable
WheelN/AN/A2 antistatic, with brakes, 2 standard.2 antistatic, with brakes, 2 standard.2 antistatic, with brakes, 2 standard.2 antistatic, with brakes, 2 standard.
Power ConsumptionAvg. 55w/hr.;
Max. 295W		Avg. 55w/hr.;
Max. 295W		Avg. 105w/hr.;
Max. 585W		Avg. 105w/hr.;
Max. 585W		Avg. 105w/hr.;
Max. 585W		Avg. 105w/hr.;
Max. 585W
Shipping
Information		23” L x 23” W x 49” H;
120 lbs		32" L x 29" W x 34" H;
145 lbs		23” L x 41” W x 48” H;
200 lbs		32” L x 29” W x 57” H;
180 lbs		29” L x 32” W x 79” H;
235 lbs		32” L x 52” W x 79” H;
445 lbs
Humidity Range≤5%RH
ColorBlack
Structure1mm thick carbon steel with antistatic paint.
DoorCompression handles, airtight magnetic sealers and antistatic glass.
Grounding Wire1MΩ. (940 mm long)
ESD PaintE3~E9 Ω. (surface resistance)
